Machine Construction

scienergyNSF

The Crossed Molecular Beams Machine was designed over a period of eight months; 320 drawings were prepared utilizing ACAD 2D and 3D modeling software. Kurt Lesker Company was contracted to build the Main Chamber, Rotating Platform, and Detector Housings. Smaller items such as supersonic sources (UHV laser ablation source, pyrolytic and photolytic sources), cold shields, HV insulation units, and electronics were done by the Chemistry Machine and Electronics Shop as well as by the Physics Machine Shop.

construction_1

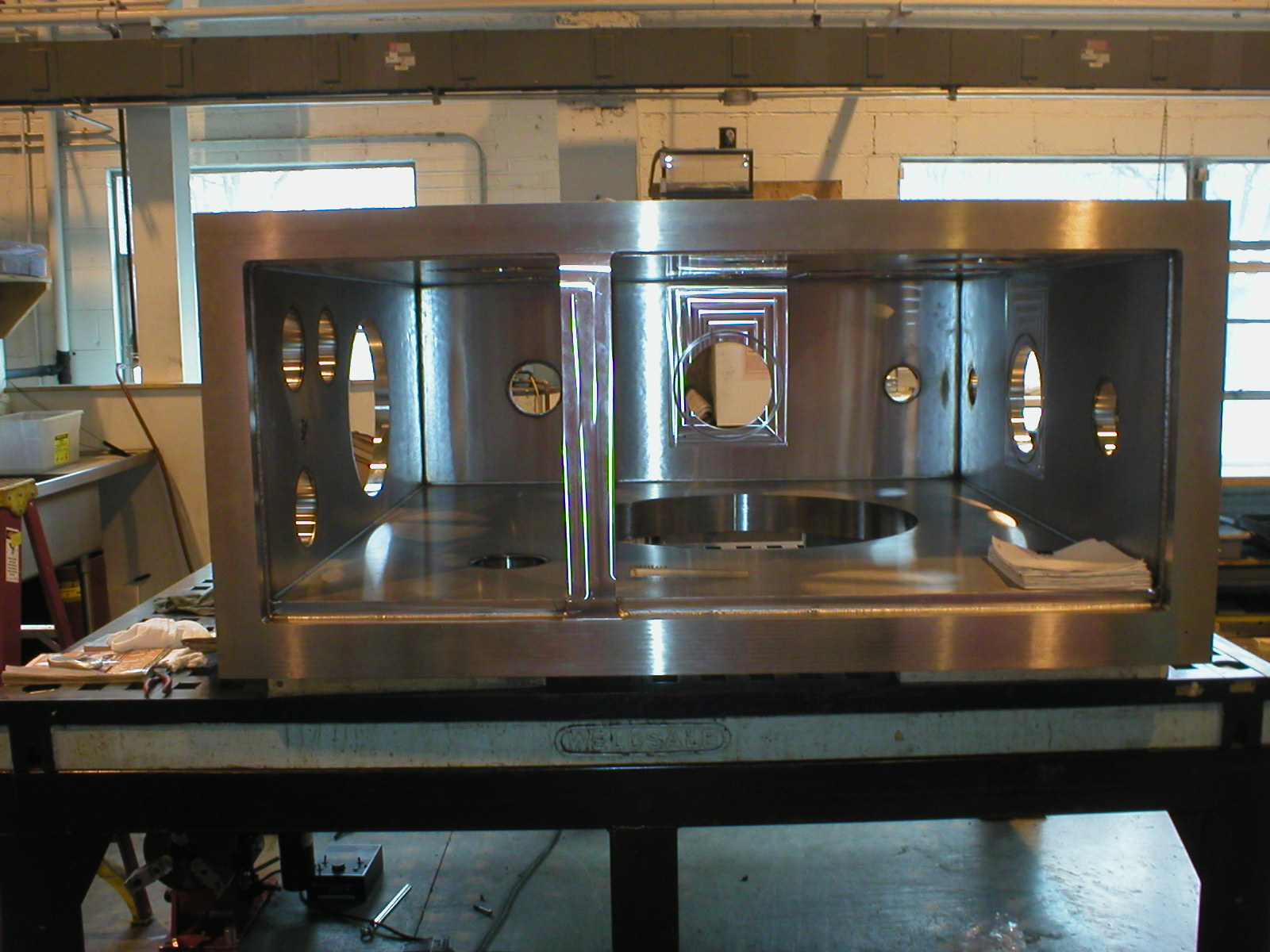

Front View of the Main Chamber
construction_2

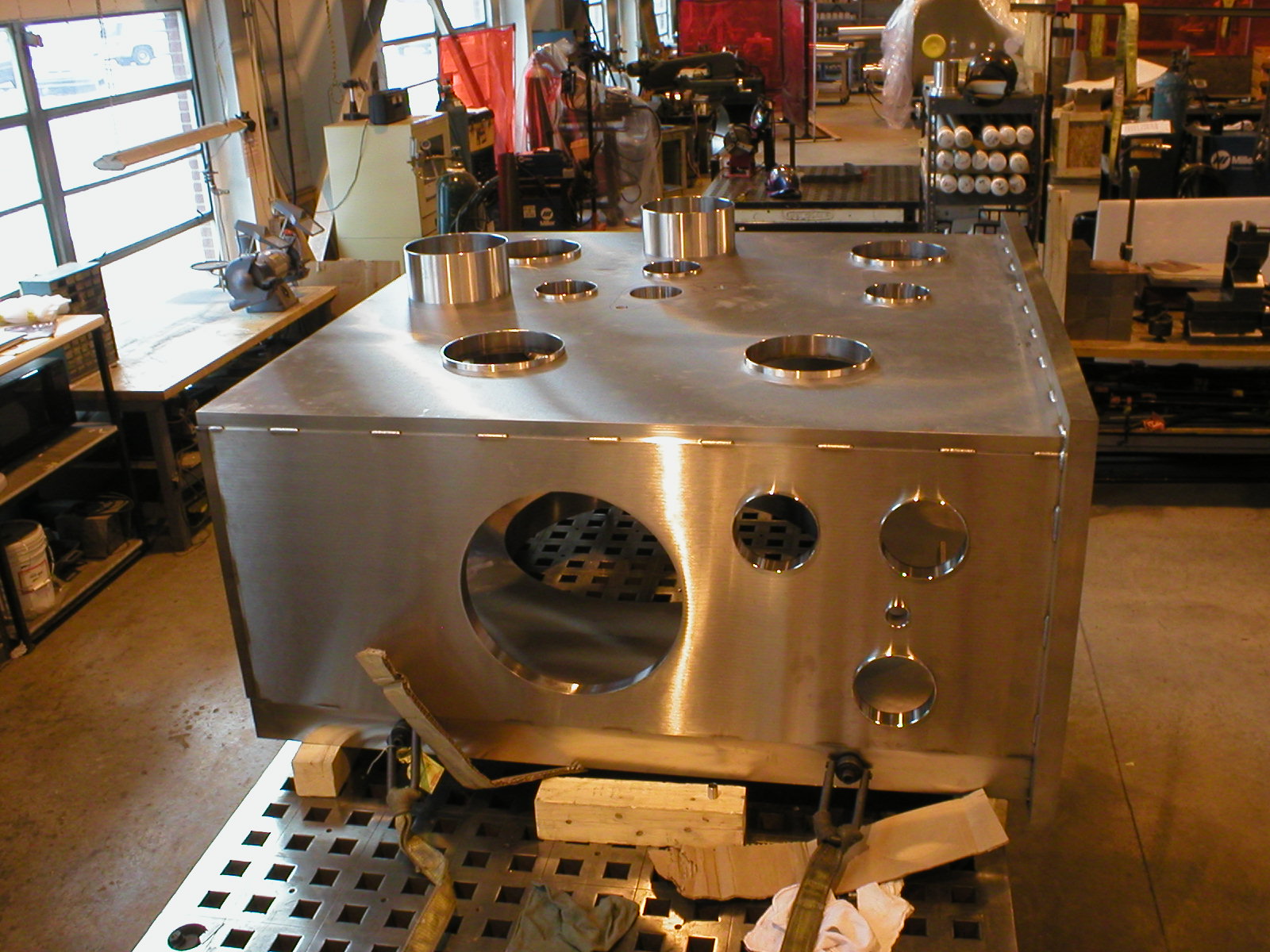

Bottom View of the Main Chamber
construction_3

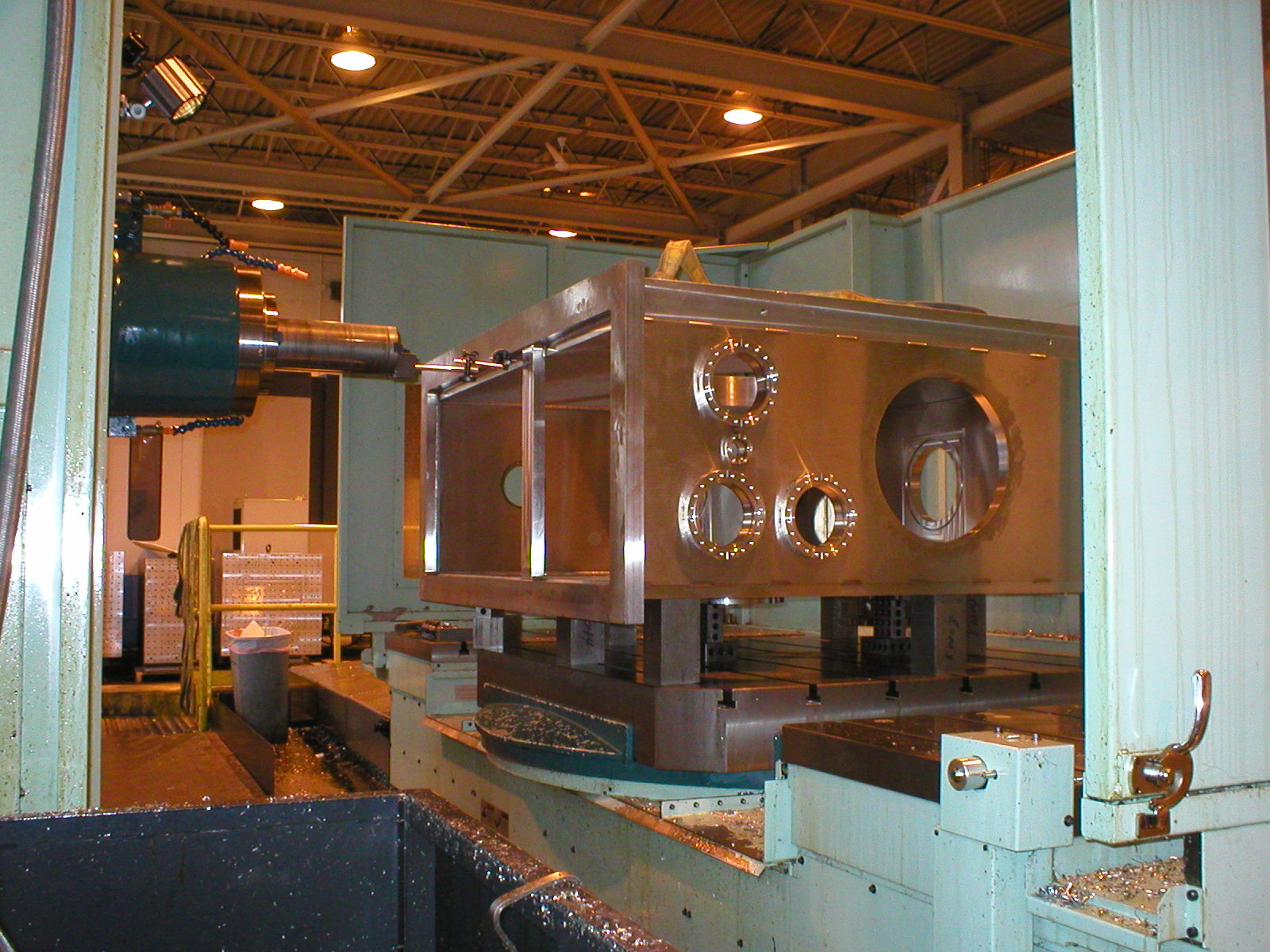

Side View of the Main Chamber
construction_4

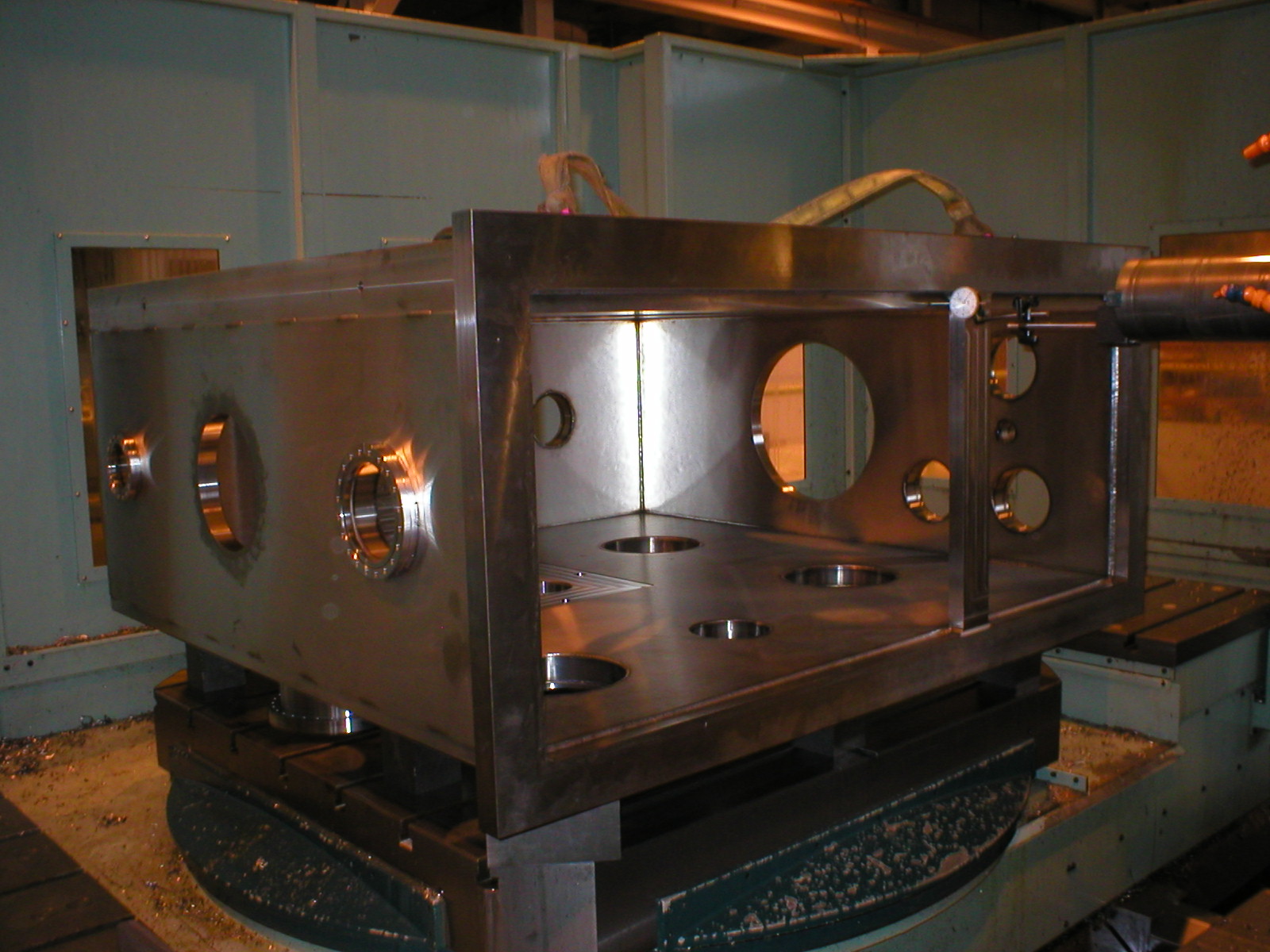

Stress Analysis of the Main Chamber
construction_5

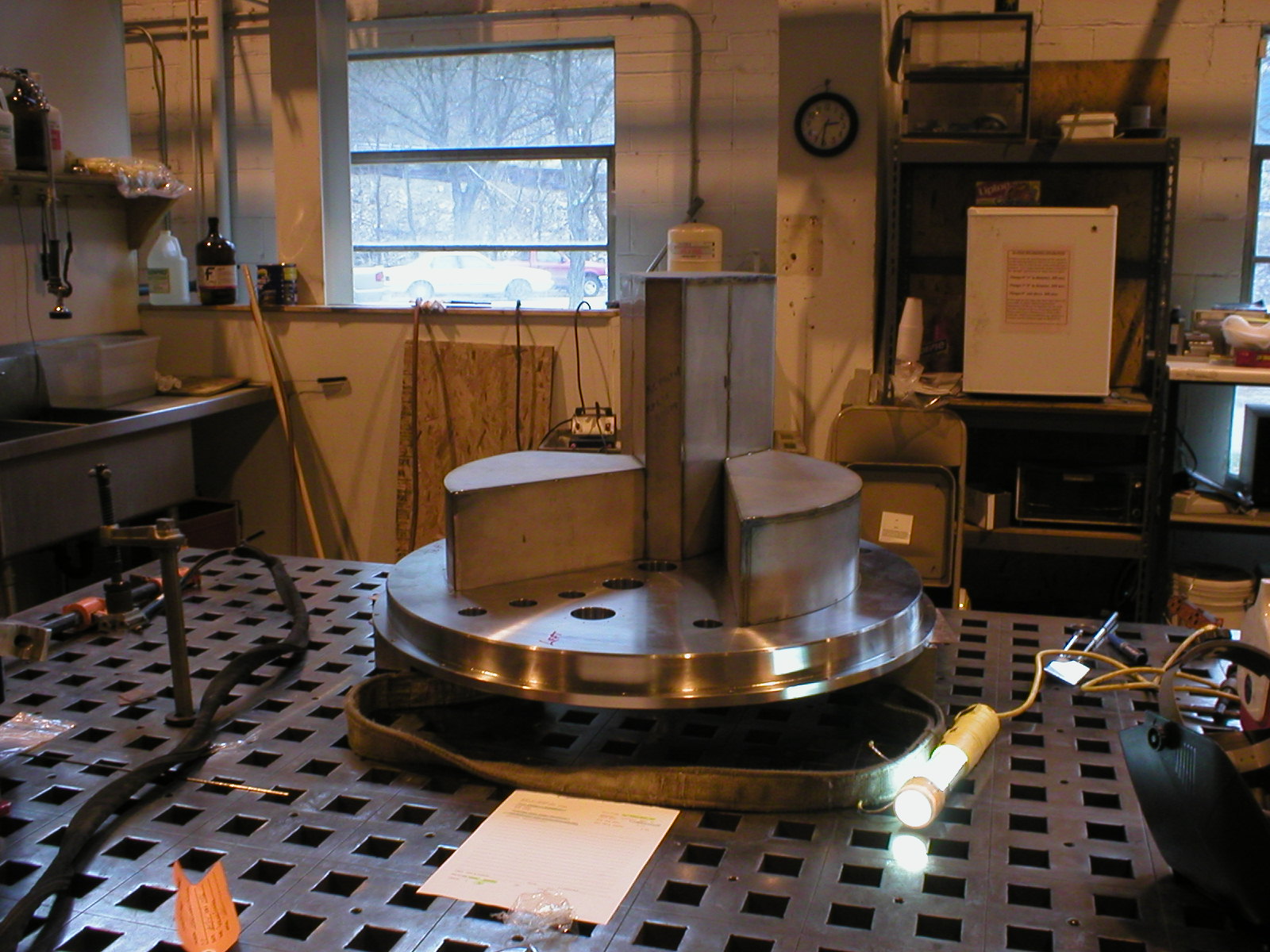

Rotatable Platform
construction_6

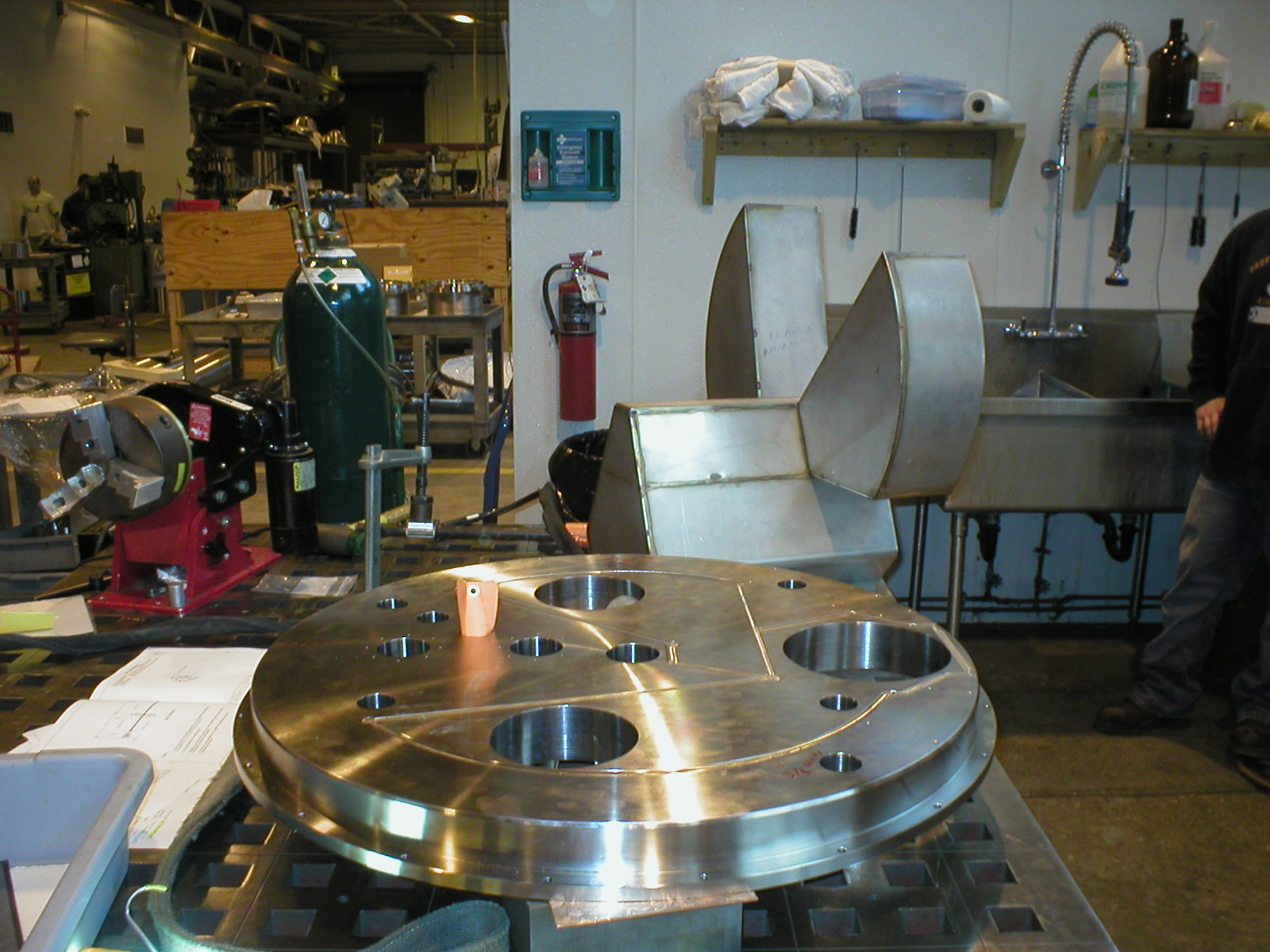

Rotatable Platform
construction_7

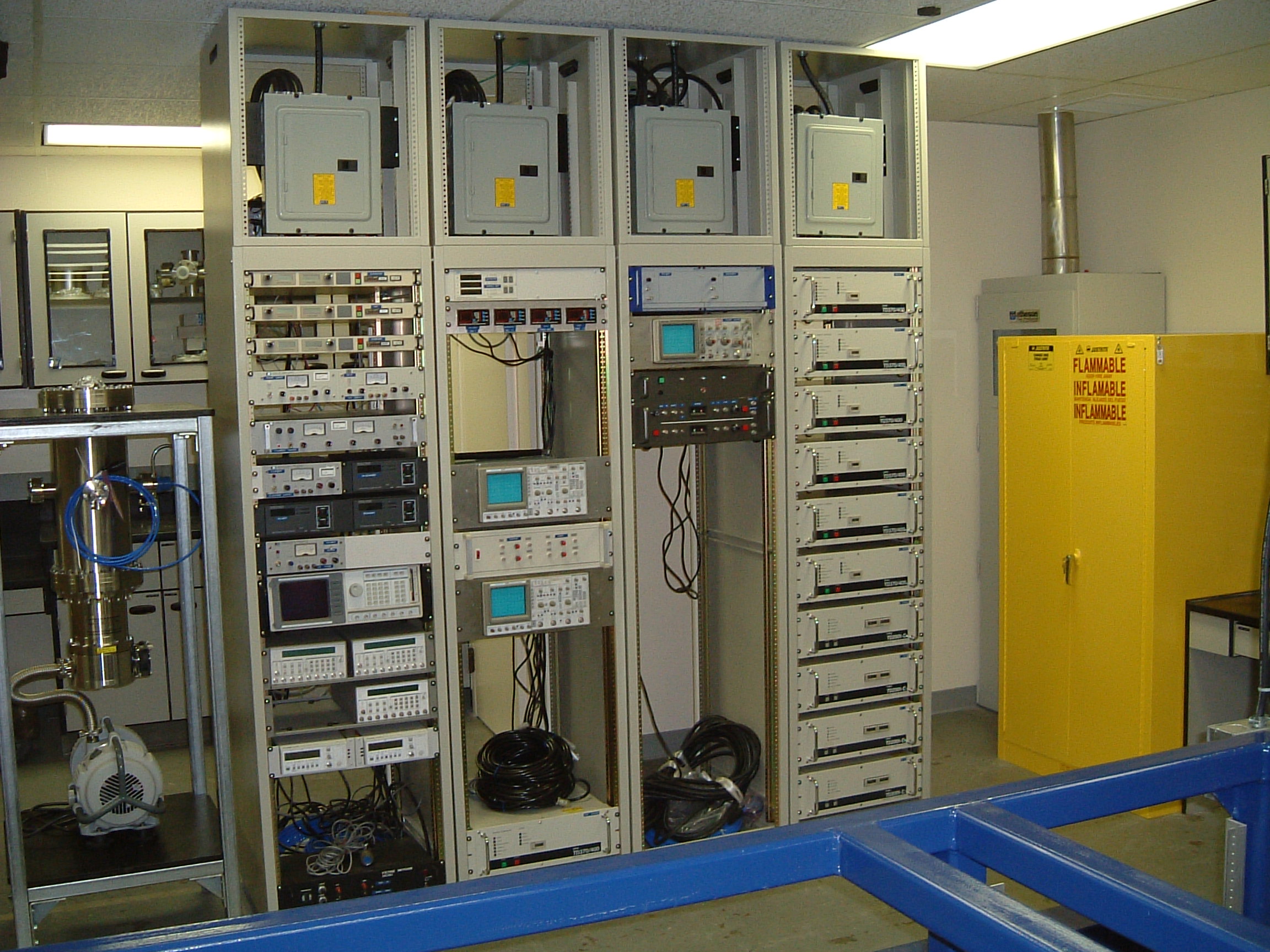

Electronic Racks to Operate the Crossed Beams Machine
