Machine Transportation

scienergy

NSF

The Main Chamber was moved by Resource Recovery, Ltd. into our lab.

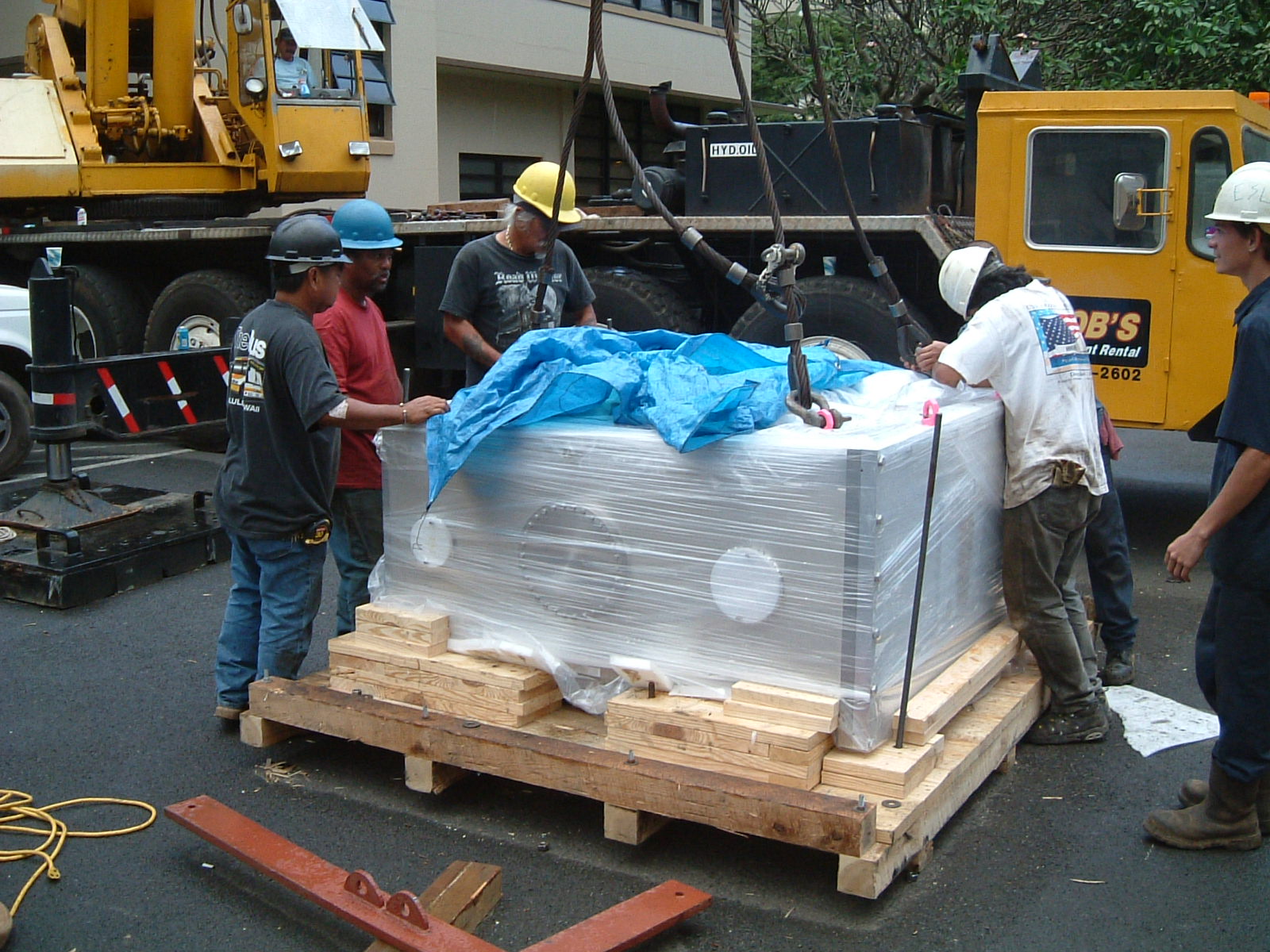

transportation_1 — Preparation to lift the 8000 lbs main chamber

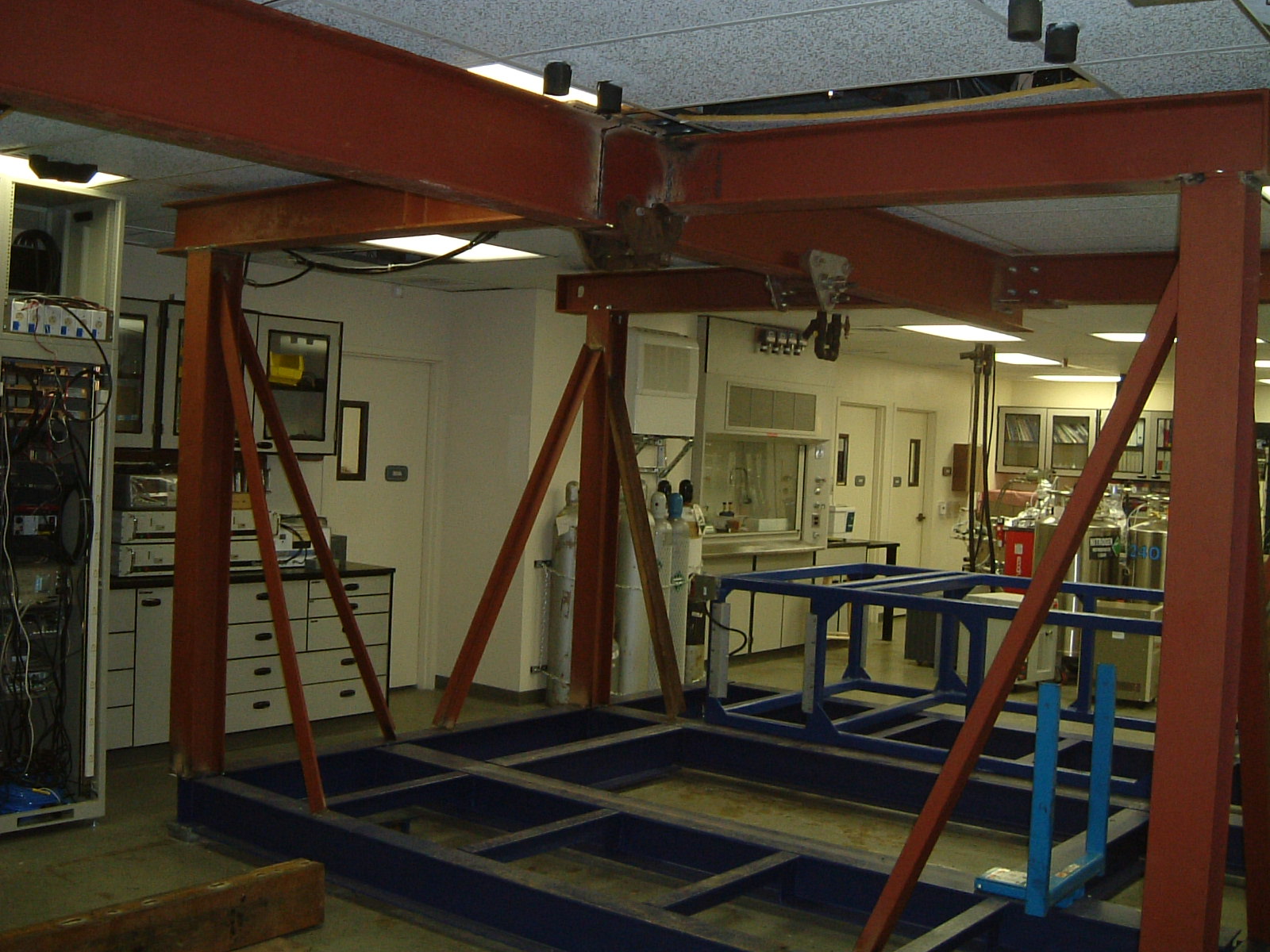

transportation_2 — Construction to lift the main chamber into the frame

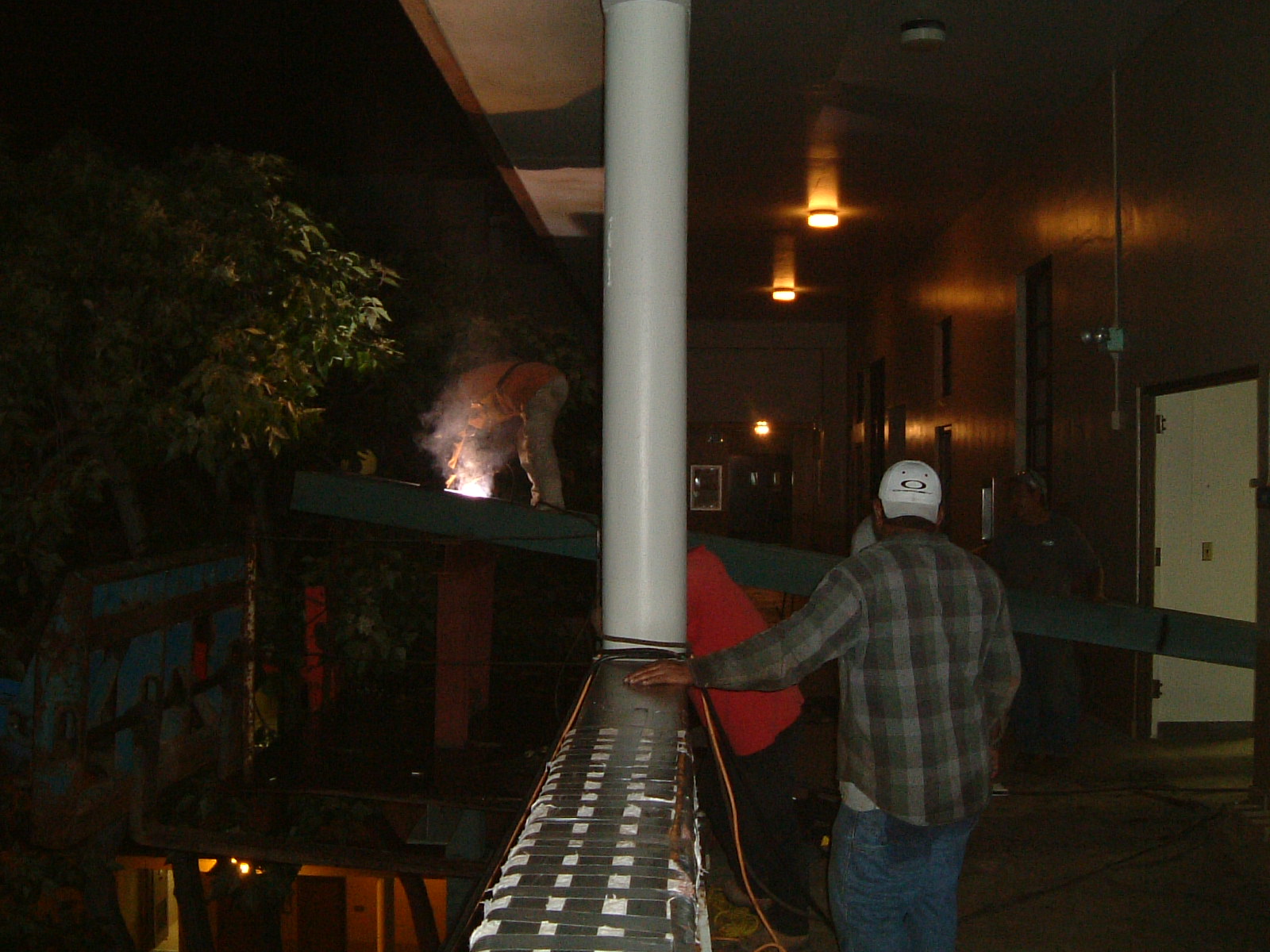

transportation_3 — Welding the rails to slide the chamber into the lab

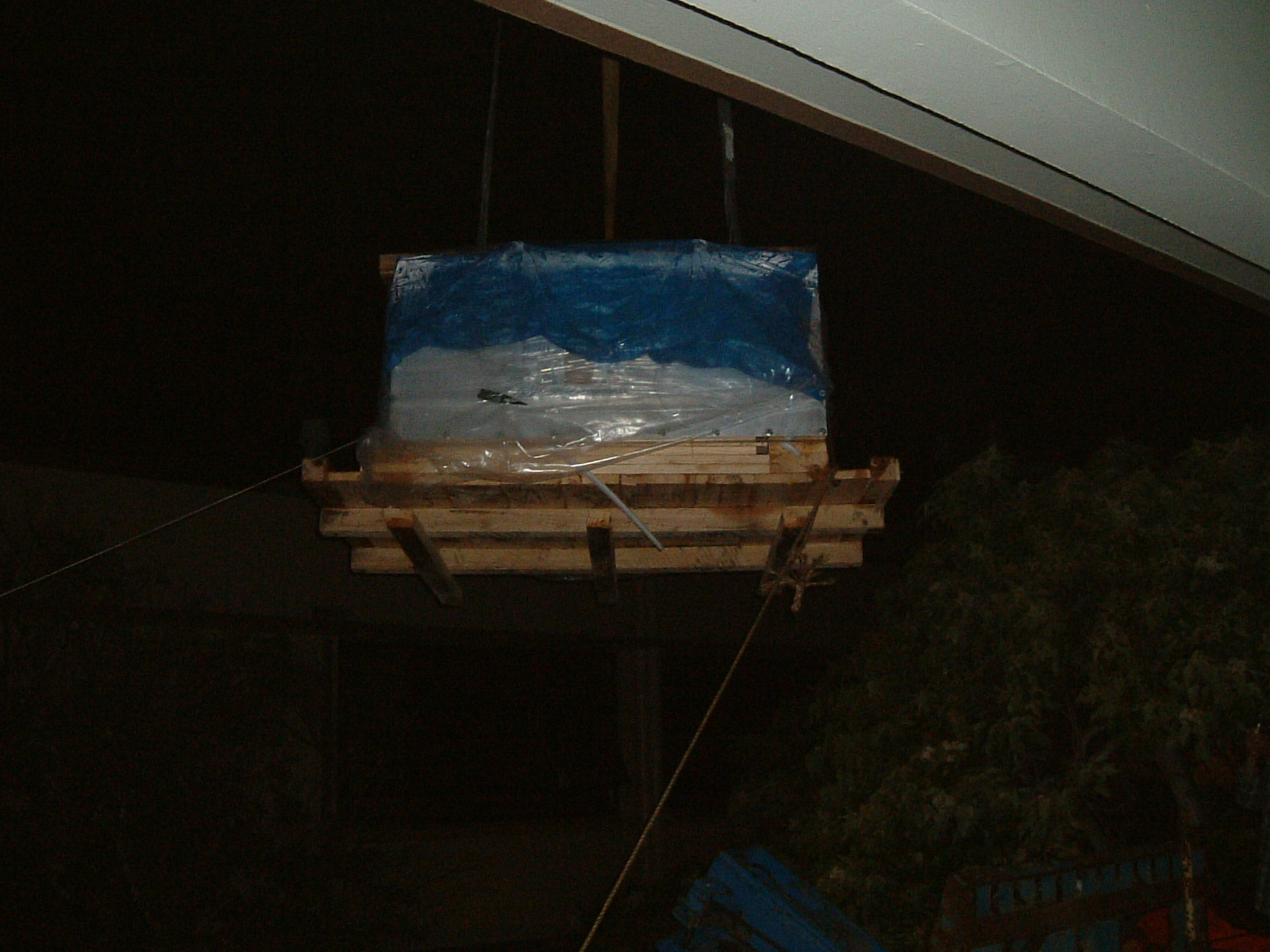

transportation_4 — Main chamber on wooden slide

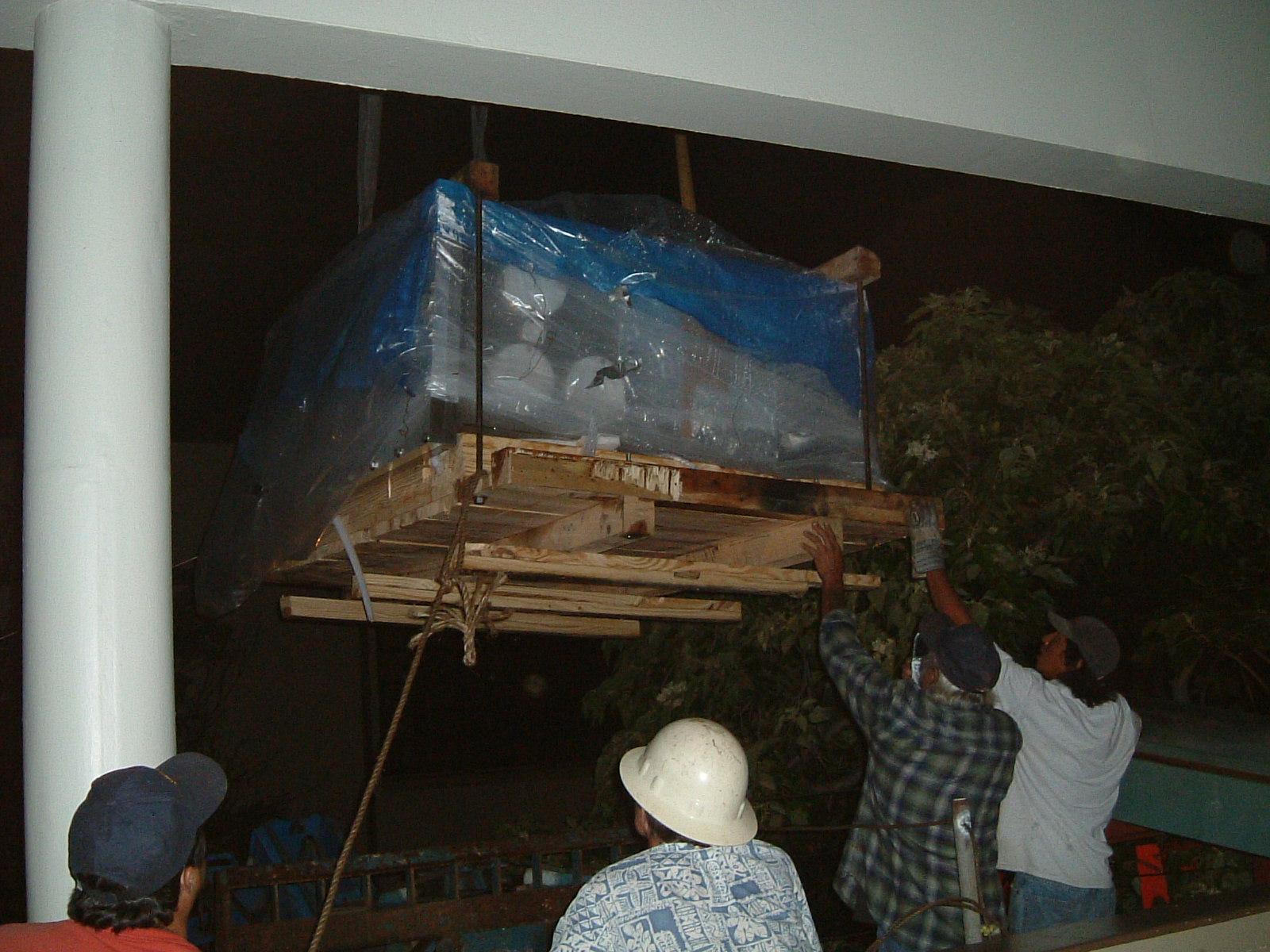

transportation_5 — Final adjustments prior to touch down on the slides

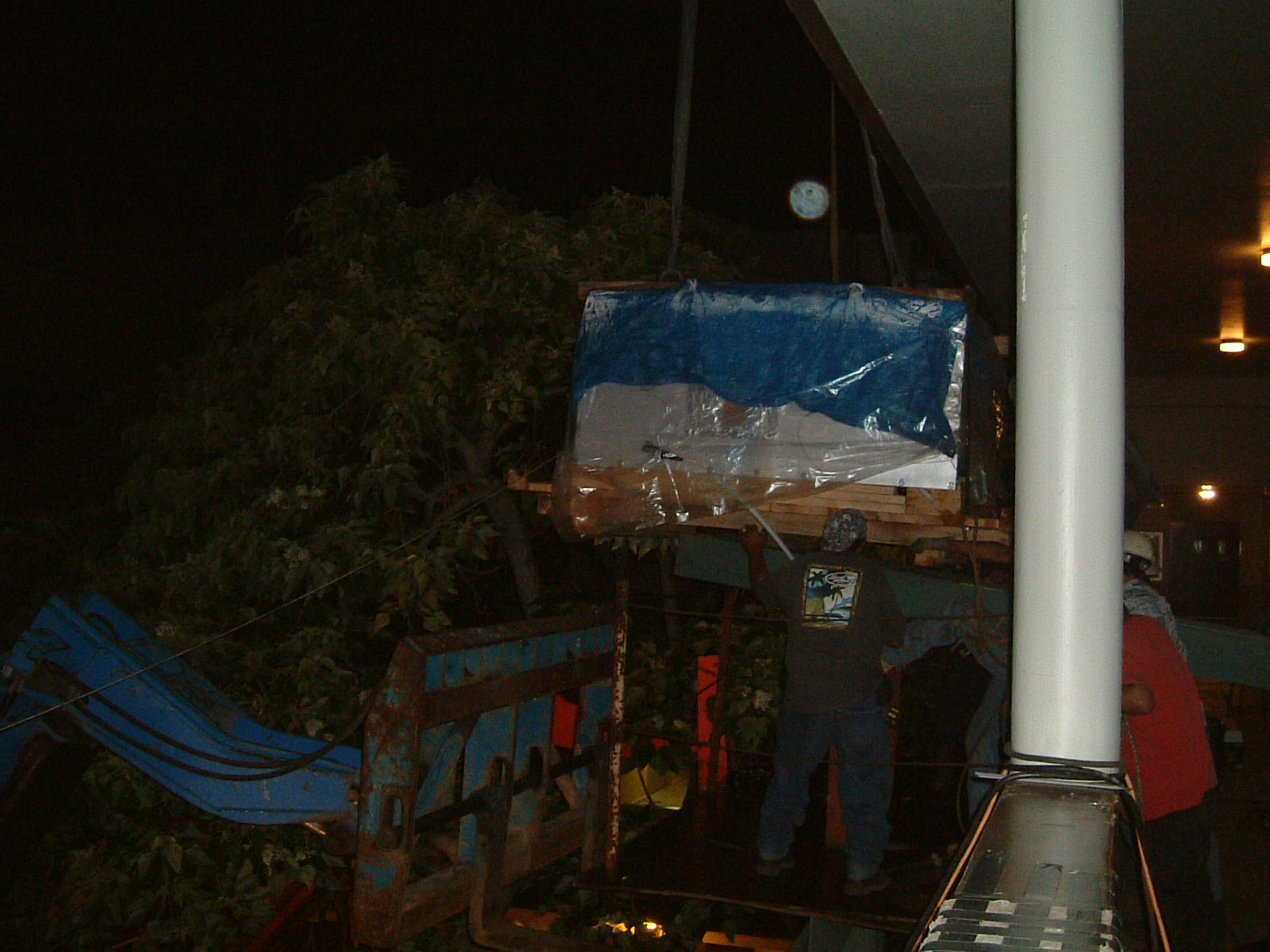

transportation_6 — Touchdown

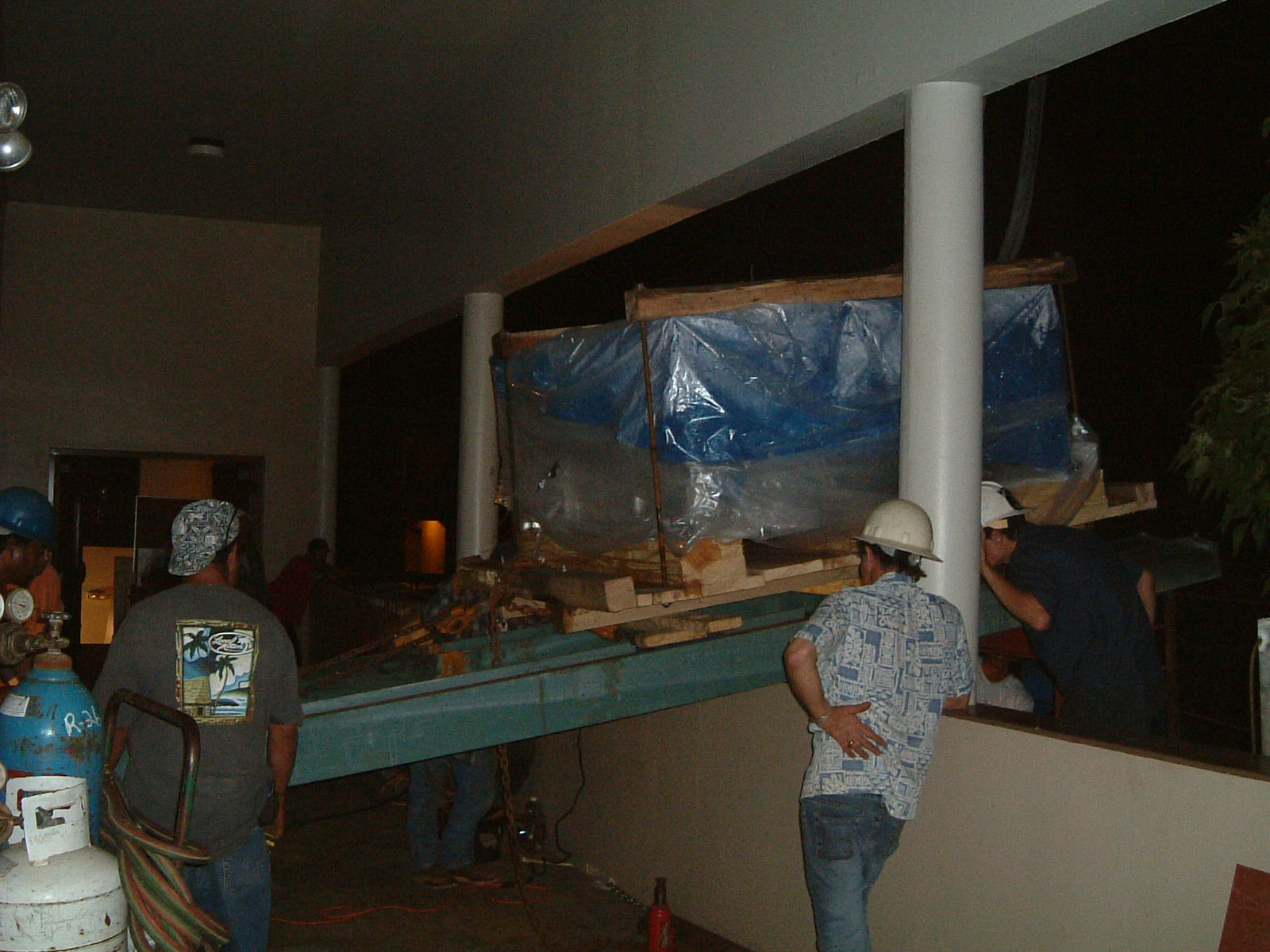

transportation_7 — Passing the balcony

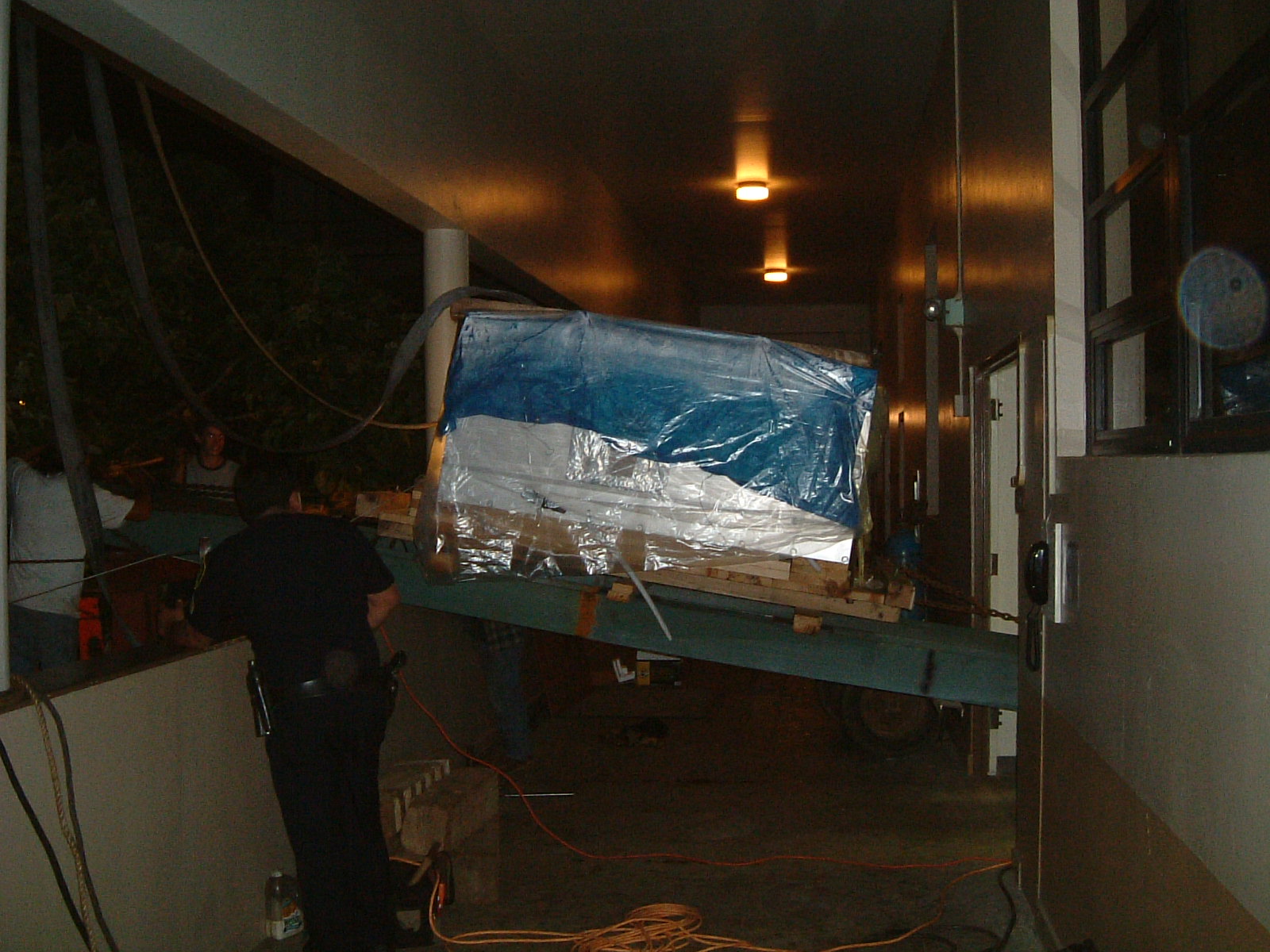

transportation_8 — On route to the lab

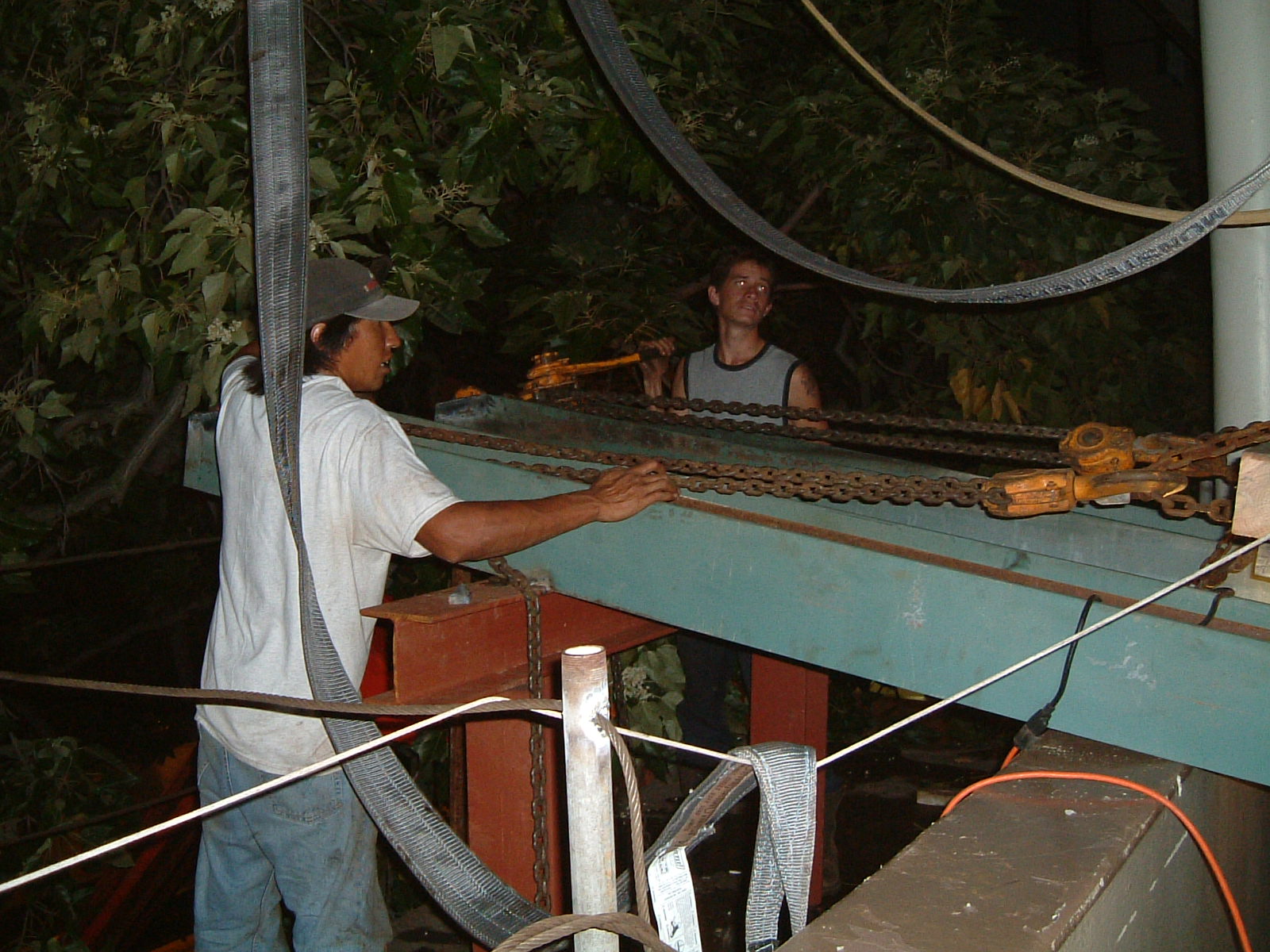

transportation_9 — Sliding in progress

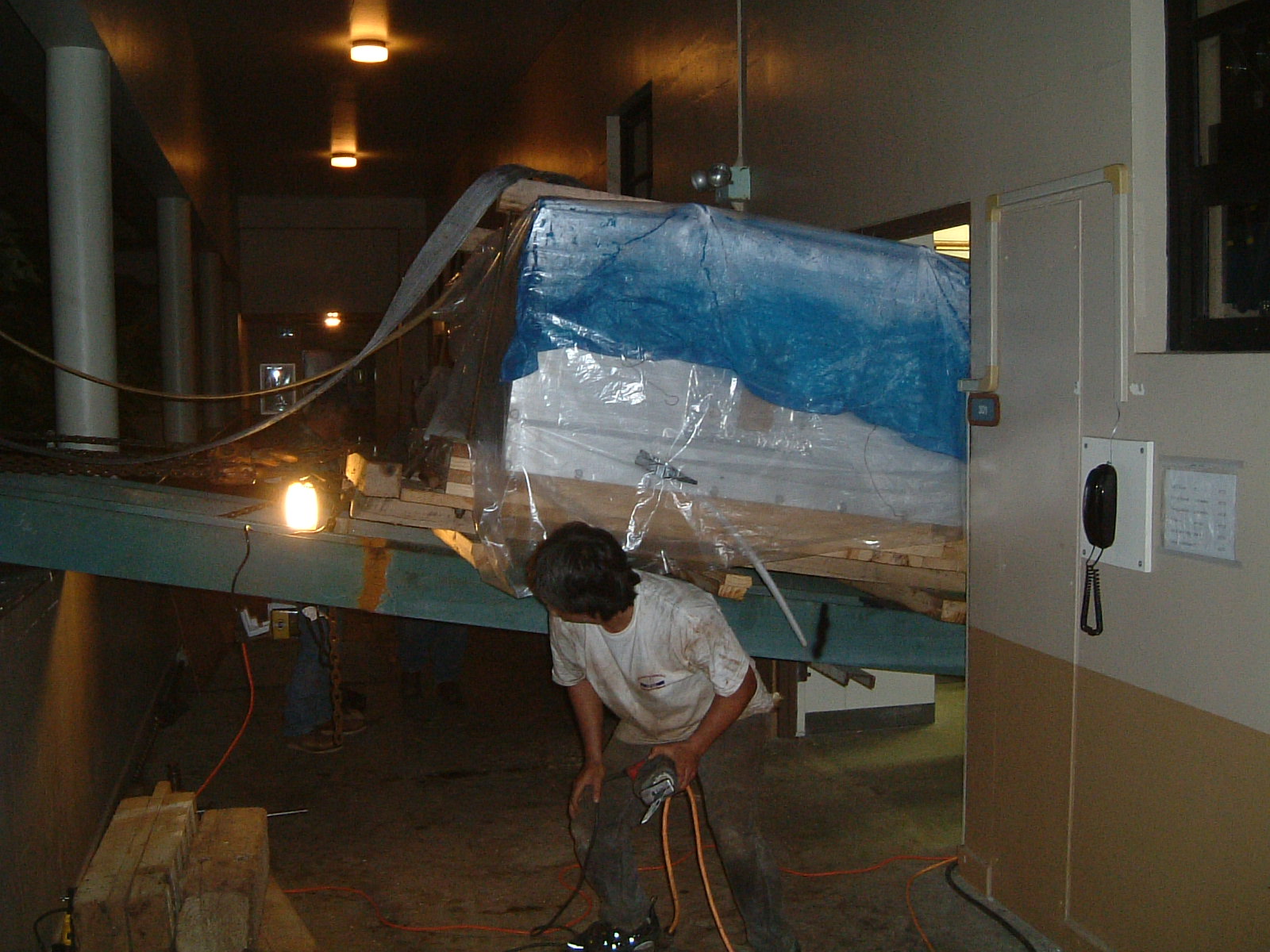

transportation_10 — Passing the door to the lab

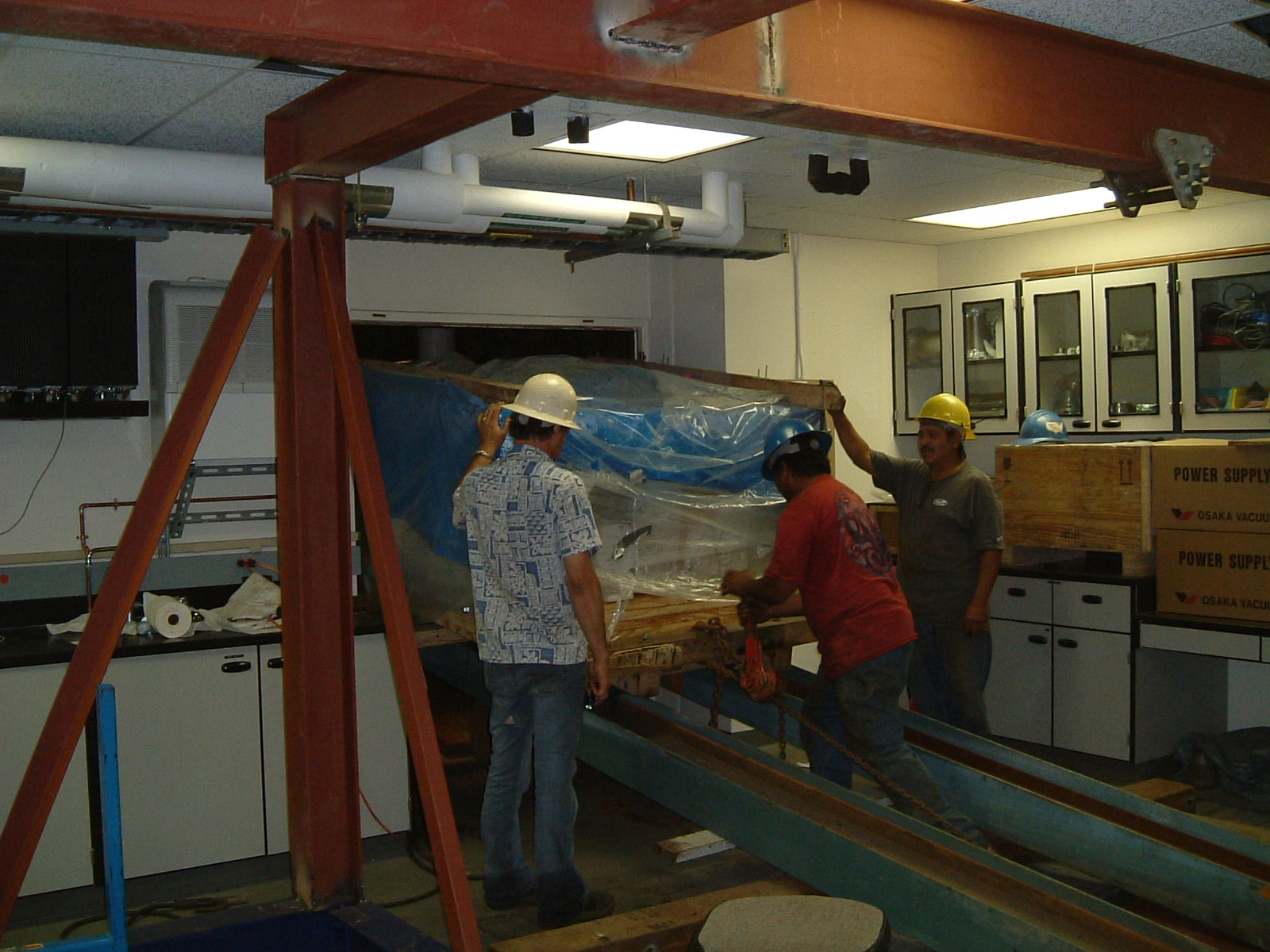

transportation_11 — Entering Bilger 301

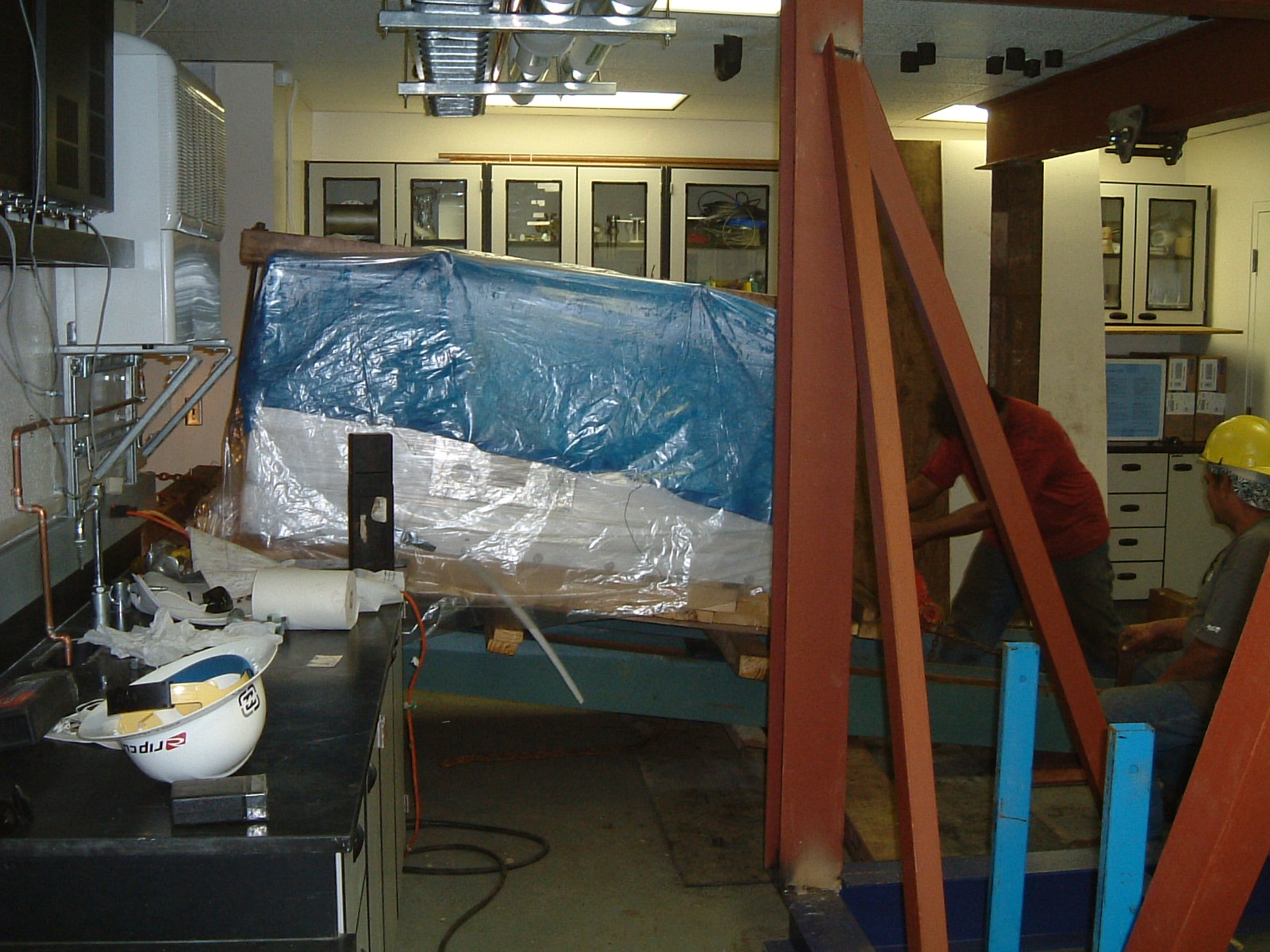

transportation_12 — Almost there...

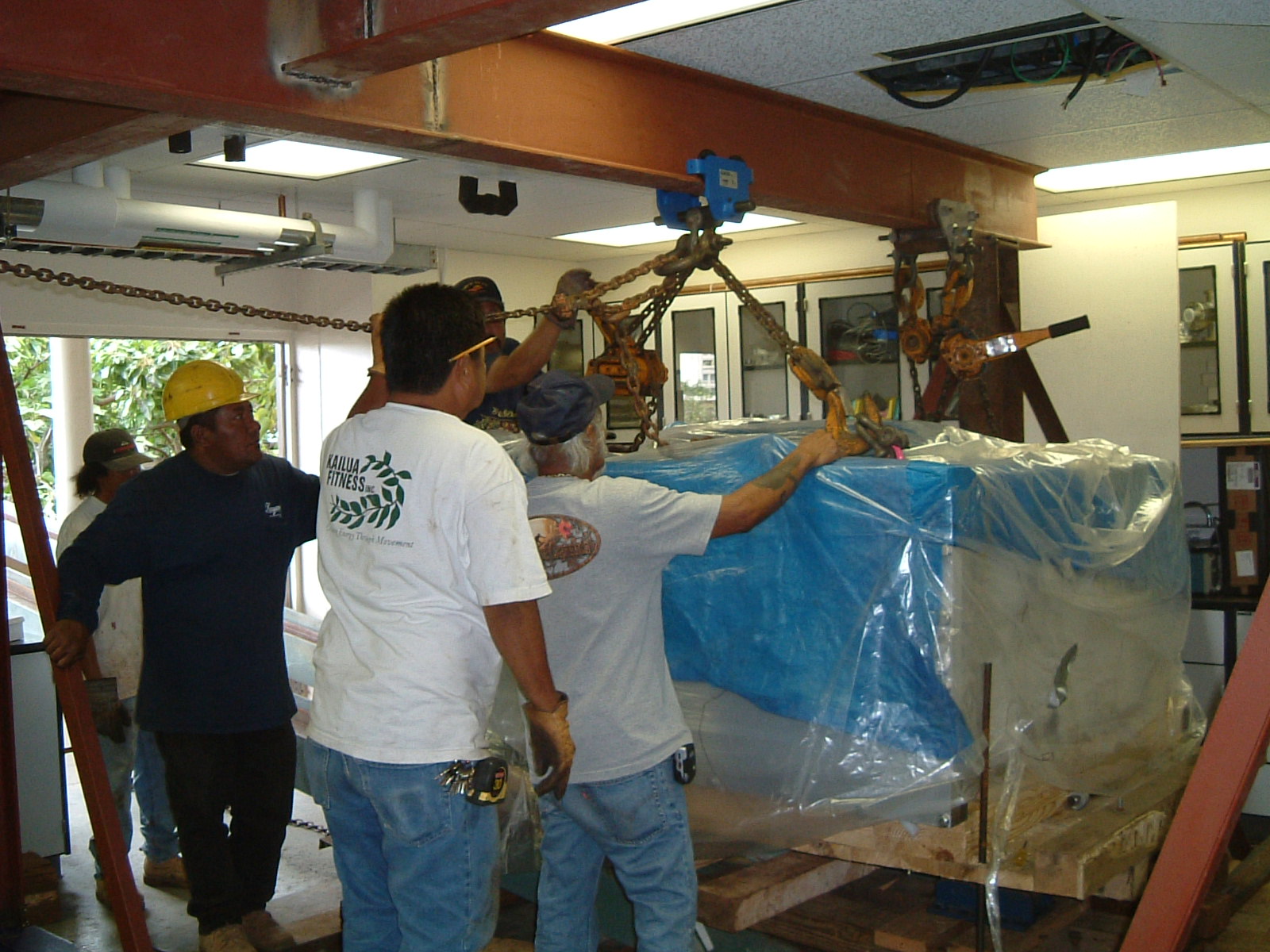

transportation_13 — The next day: Lifting the main chamber onto the frame

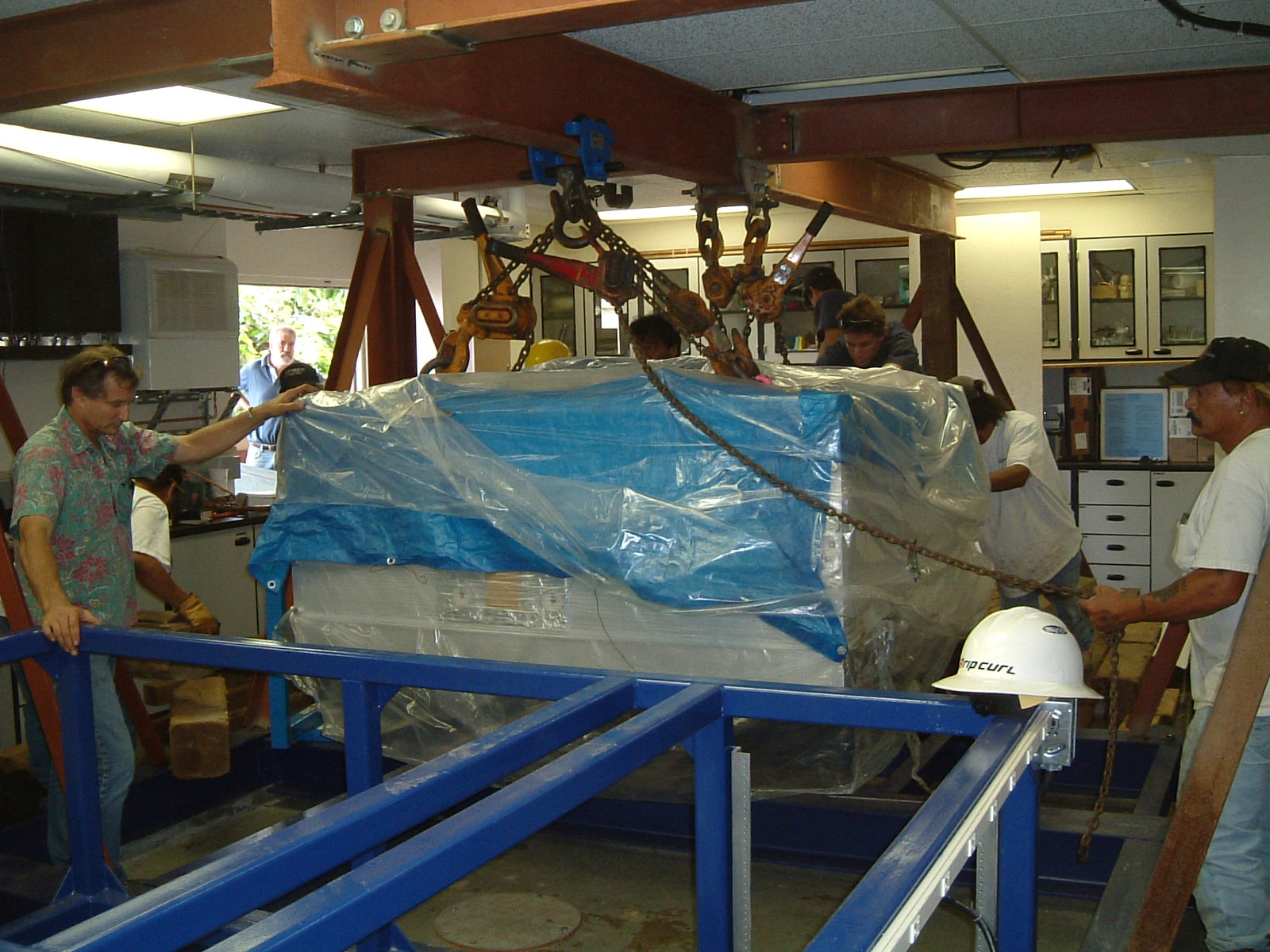

transportation_14 — Final preparations

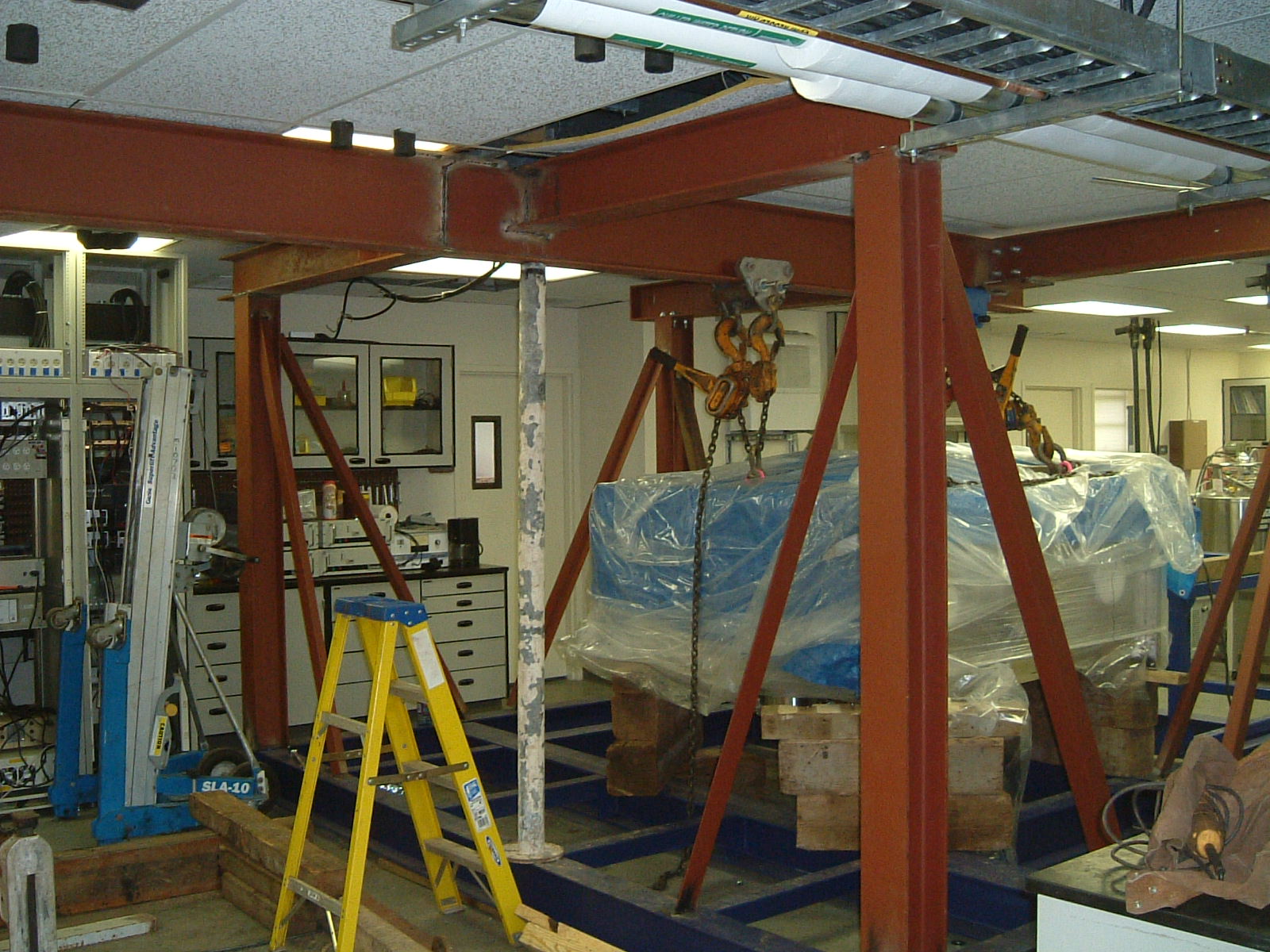

transportation_15 — Main chamber on weight distribution platform

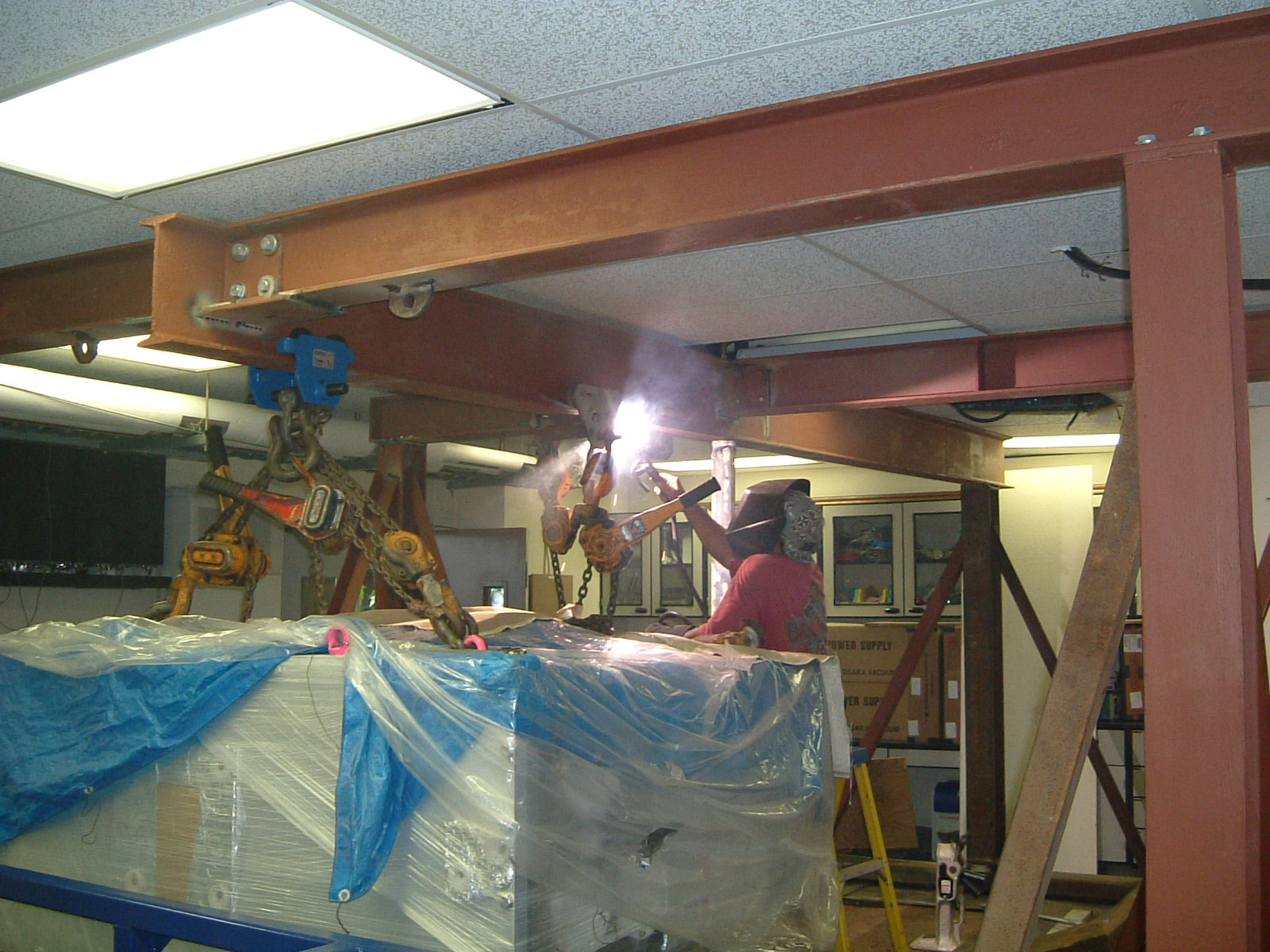

transportation_16 — Relocating the rigging structure

transportation_17 — Lifting the main chamber on the frame

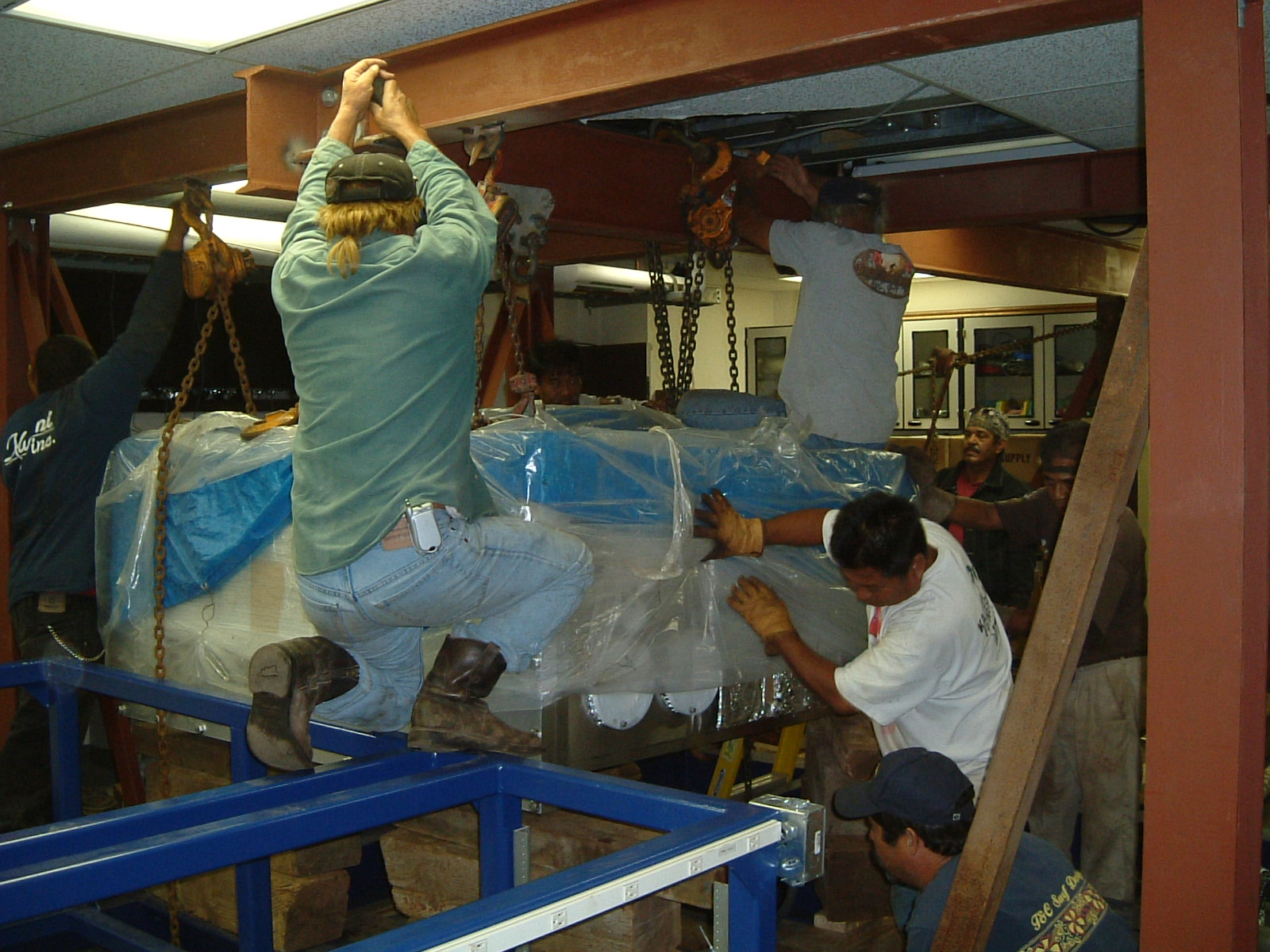

transportation_18 — Still in progress

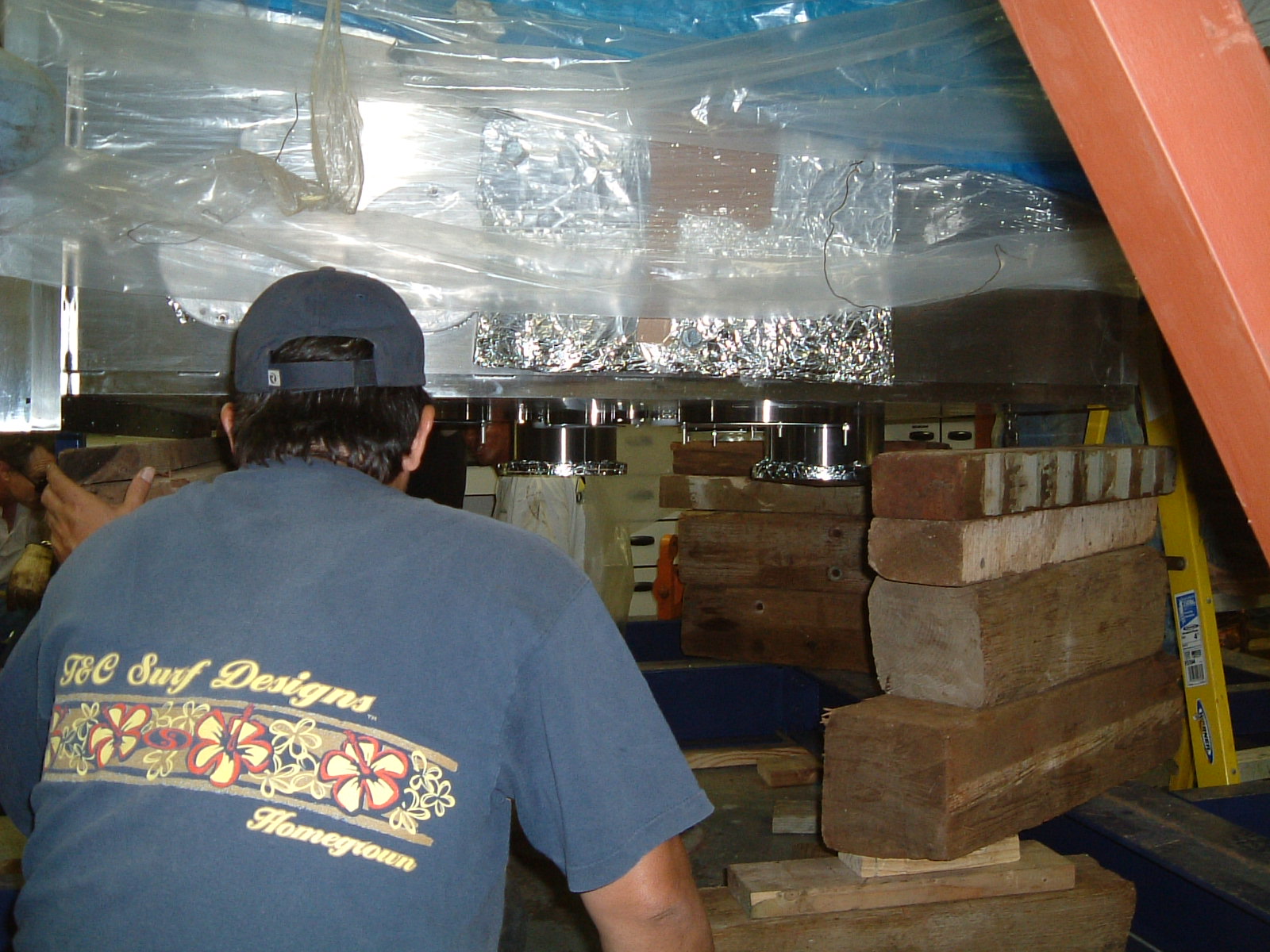

transportation_19 — Almost there

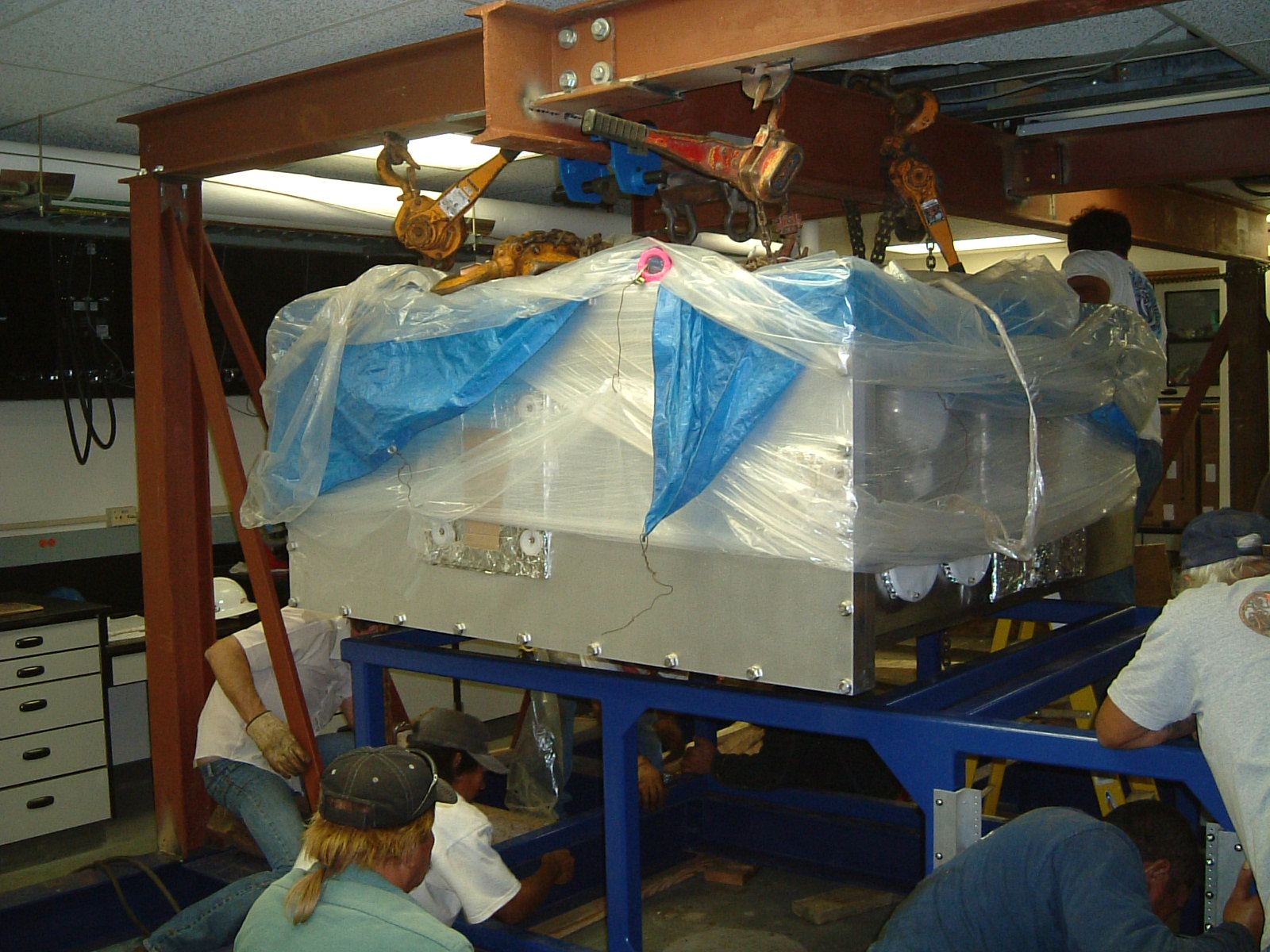

transportation_20 — Only a few inches to go
